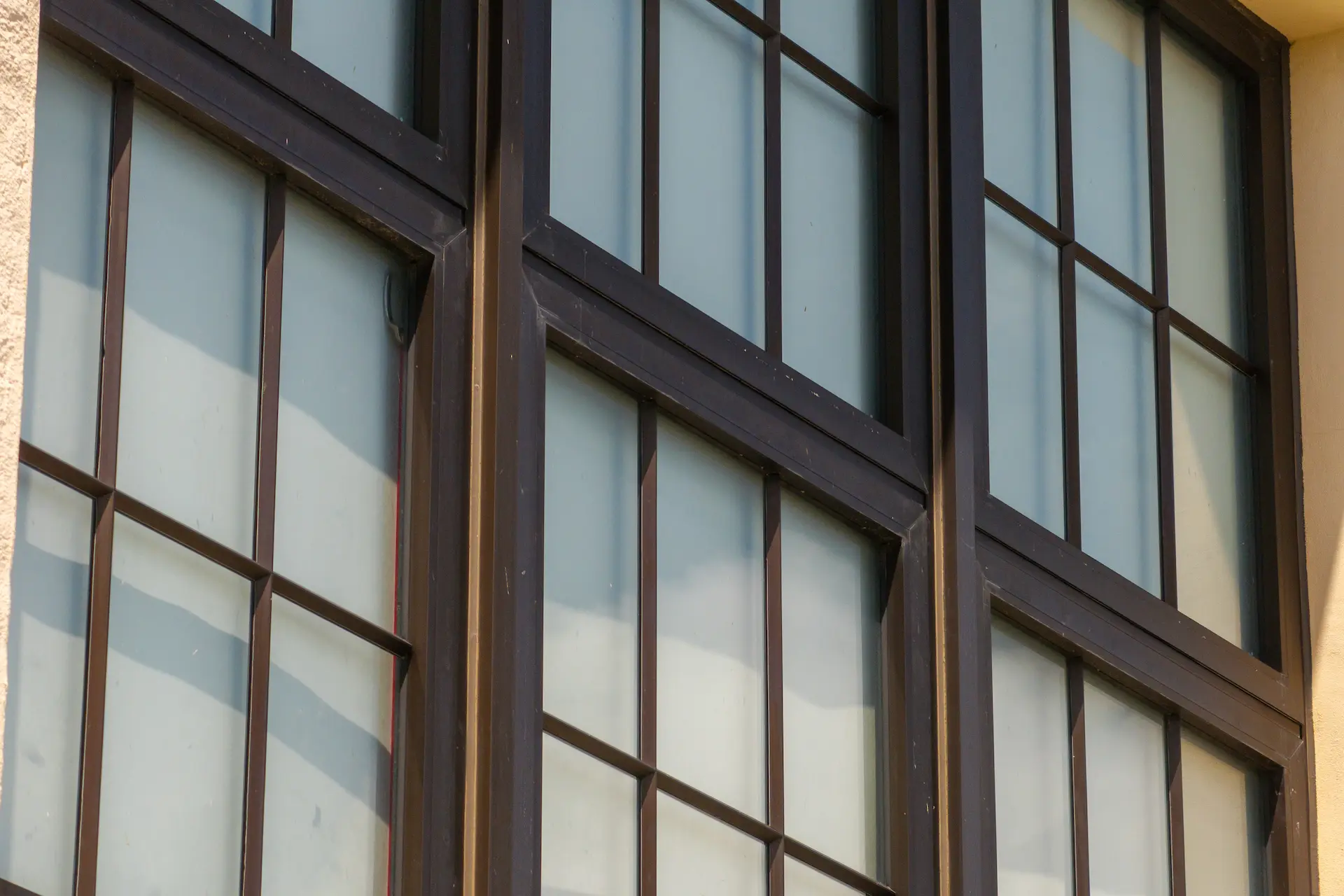

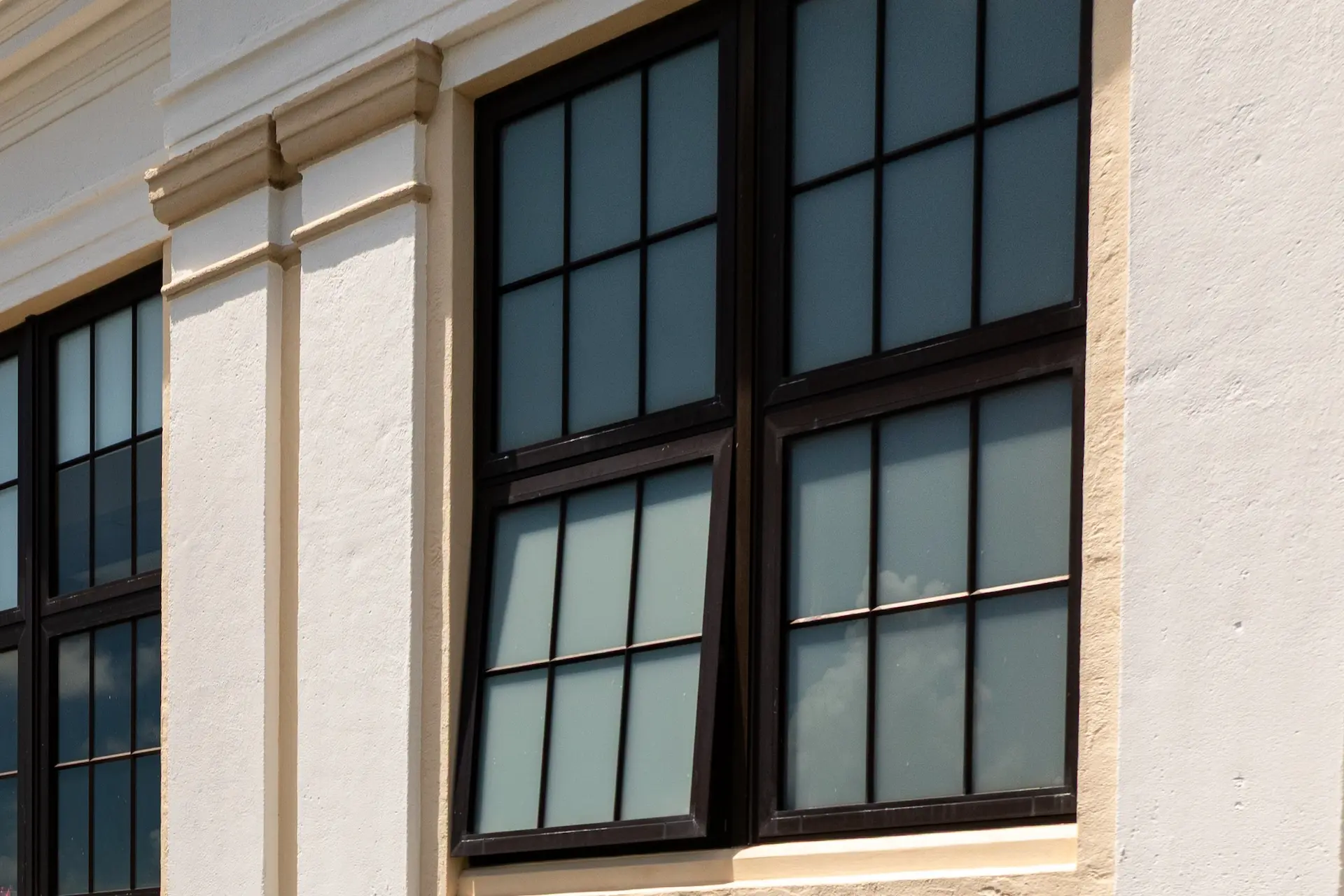

Series 3000 Architectural Projected Windows
About Series 3000 Architectural Projected Windows
The Series 3000 Monumental Projected Window system by Sol-A-Trol is a robust architectural solution specifically developed for the rigorous demands of the Florida market. These windows are designed to provide superior ventilation while maintaining high structural integrity in commercial and residential applications. Engineered to meet or exceed AAMA specifications for HC-70, this system is a preferred choice for projects requiring high performance and a monumental aesthetic.
Each unit features a 2-inch frame depth with a heavy-duty wall thickness of 1/8-inch, utilizing premium extruded 6063-T6 aluminum alloy for maximum strength. The frame and sash construction utilize a double mortise, tenon, and riveted assembly, with all vents being mitered, reinforced, and welded to ensure a factory-sealed, long-lasting finish. Neoprene weatherstripping is integrated at every contact point between the sash and frame to prevent air and water infiltration.
For projects in High-Velocity Hurricane Zones (HVHZ), the Series 3000 is available in large missile impact-resistant models. These models are tested in accordance with Miami-Dade County protocols to withstand extreme design pressures of up to +/- 100 psf, offering reliable protection against Florida’s most intense weather conditions.
Key Features
- Meets or exceeds AAMA HC-70 specifications for high-performance architectural projects.
- Heavy-duty 2-inch frame and sash depth with 1/8-inch wall thickness for superior structural stability.
- Large missile impact-resistant options tested to Miami-Dade protocols with design pressures of +/- 100 psf.
- Double mortise, tenon, and riveted frame construction with mitered, reinforced, and welded vents.
- High-quality white bronze locking hardware with a U.S. 25-D finish.
- Equipped with heavy-duty, non-magnetic stainless steel 4-bar adjustable friction hinges.
- Accommodates 7/16-inch or 9/16-inch laminated glass in impact-resistant configurations.
