Series 400 Aluminum Fixed Louver
About Series 400 Aluminum Fixed Louver
The Sol-A-Trol Series 400 is a high-performance, heavy commercial fixed aluminum louver window system designed to deliver continuous natural ventilation and reliable solar control for modern building envelopes. Engineered specifically to withstand the strict structural and environmental demands of coastal, tropical, and hurricane-prone areas, this system offers an ideal solution for facilities requiring constant fresh air intake. By blending active airflow management with high-tier security, it serves as an excellent barrier that protects building perimeters without sacrificing ventilation efficiency.
Built from premium extruded 6063-T6 aluminum alloy, the Series 400 features a robust 4-inch deep master frame engineered for enhanced structural performance and long-term durability under demanding conditions. The perimeter framing incorporates variable wall thicknesses to provide optimal rigidity at critical stress points. To satisfy diverse architectural aesthetics and resist severe environmental degradation, the framing can be specified in a premium selection of coatings, including Class I clear anodized, bronze hardcoat, electro-statically applied baked enamel, and high-durability Kynar 500 fluoropolymer finishes.
Key Features
- Heavy commercial framework extruded from high-tensile 6063-T6 structural aluminum alloy.

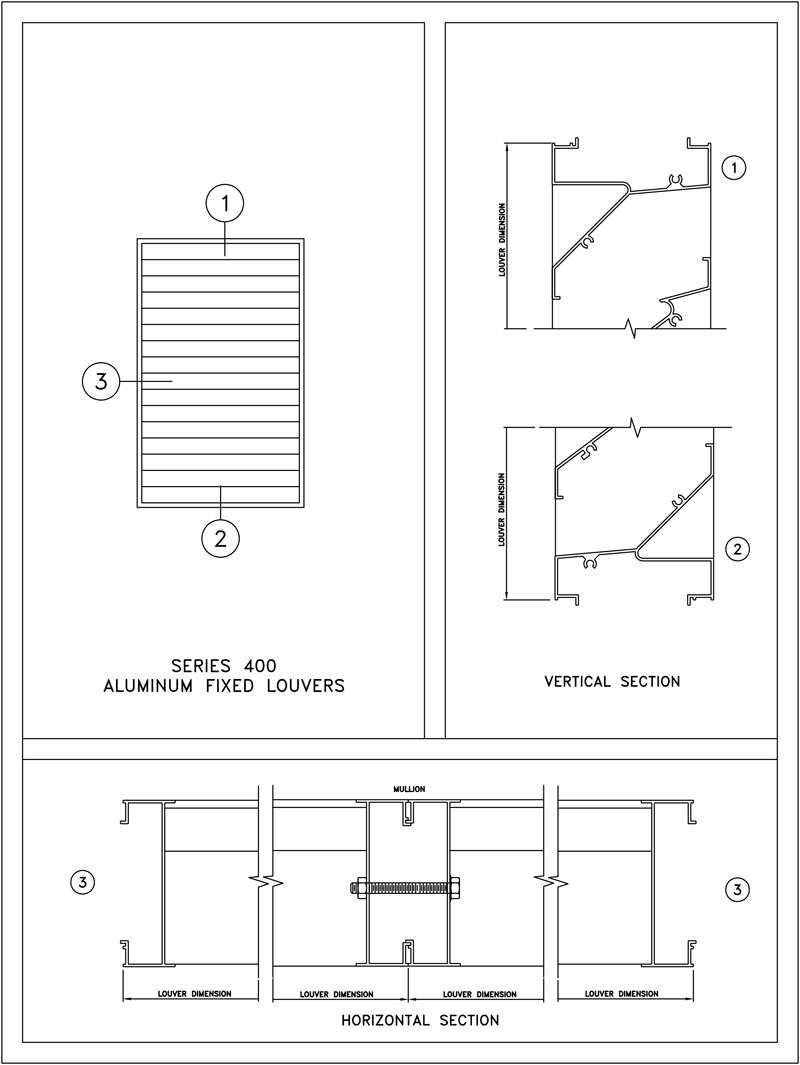

- Robust 4-inch deep master frame profile engineered for enhanced structural performance.
- Fixed louver blade engineering optimized for maximum passive solar shading and rainwater deflection.
- Continuous ventilation design providing excellent net free area efficiency for mechanical and intake zones.
- Premium architectural finish options including Clear Anodized, Bronze Hardcoat, Baked Enamel, and marine-tier Kynar 500.
- Engineered to satisfy high-exposure coastal project requirements and strict commercial structural demands.
- Flexible installation parameters suitable for standalone masonry openings or integration into storefront subframes.
