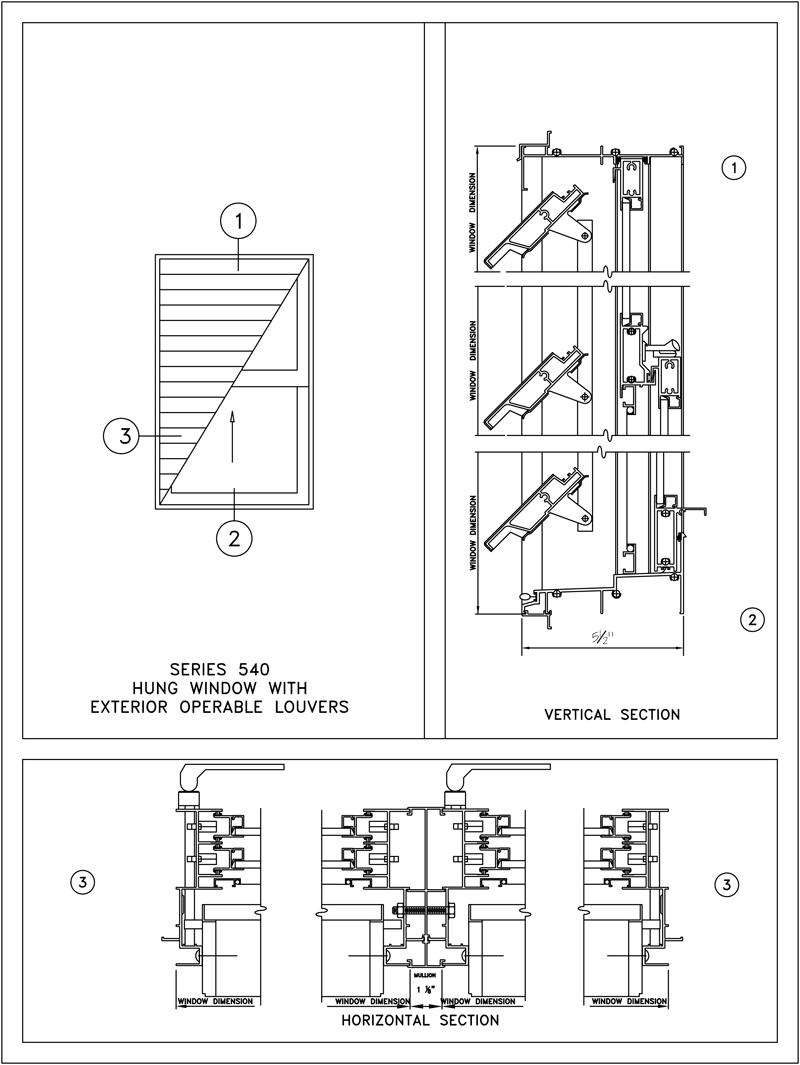

Series 540 Window with Solar Control Louvers

About Series 540 Single/Double Hung Window with Solar Control Louvers

The Sol-A-Trol Series 540 is a high-performance commercial window system that combines the traditional utility of single or double hung operation with integrated solar control jalousie louvers. Engineered to meet the demanding structural requirements of the Florida market, this hybrid system offers a versatile dual-functioning solution. It allows architects and developers to specify a single unit that balances controlled fresh air intake via adjustable louvers with standard vertical sash operation, making it ideal for high-occupancy commercial and institutional environments.

‍

Key Features

• Extra-heavy 5.5-inch deep frame engineered for high-load commercial applications.
• Formed from 6063-T6 structural extruded aluminum alloy with a robust 0.078-inch frame wall thickness.
• Integrated 4-inch deep louvers featuring an L-shaped structural leg for full-length rigidity.
• Optional double-tubular louver blade configuration certified for large missile impact resistance.
• High-velocity performance ratings with design pressures tested up to +106.7 to -210.0 PSF.
• White bronze locking cam handles that automatically lock the louvers securely in the closed position.
• Specialized take-out sash balance system providing smooth operation and tool-free sash removal.
• Multi-tier weatherproofing featuring double sash perimeter pile, continuous stainless steel jamb compression, and optional vinyl flap keyway seals.
• Glazing compatibility accommodating up to 0.5-inch thick architectural glass secured by an extruded snap-in bead.
